| 61 |

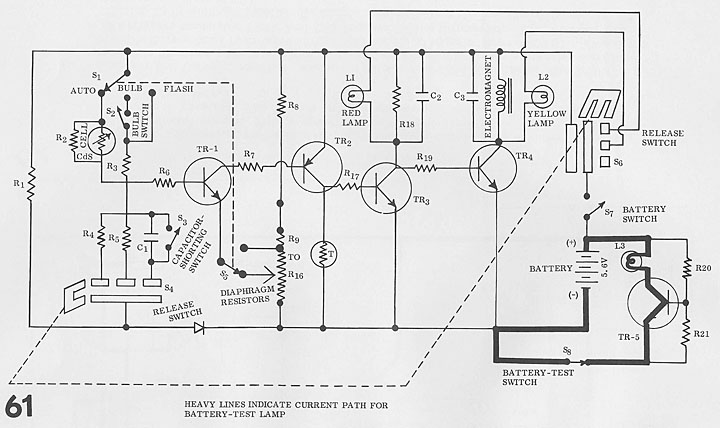

| Depressing the battery test button closes the battery test switch S8. Battery current then flows through resistors R21 and R20. A sufficient voltage drop across R21 turns on transistor TR5. So current flows through the transistor and through the battery test lamp L3. |
