Yashica Electro 35 Repair Manual | 29 of 129 | <-- previous | index | next --> |
28 |

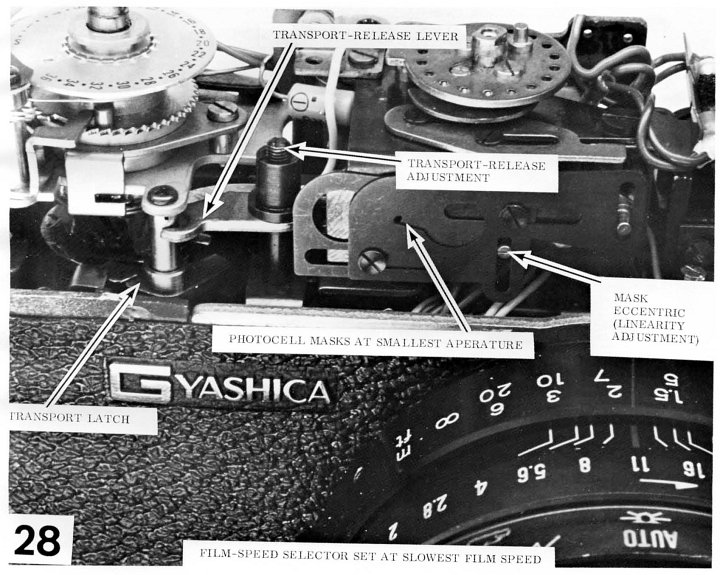

As you depress the release button, the transport release lever pushes down the transport latch. The transport release lever should push the transport latch out of engagement with the transport cam just before the shutter releases. You can make the transport release adjustment at either one of two places -- at the top of the release rod or at the bottom. (Figure 28 or Figure 7.) Both screwdriver slotted adjustments affect the position of the transport release lever. And the position of the transport release lever determines the point at which the transport latch disengages during the downward stroke of the release rod. |
